d 1~4mm

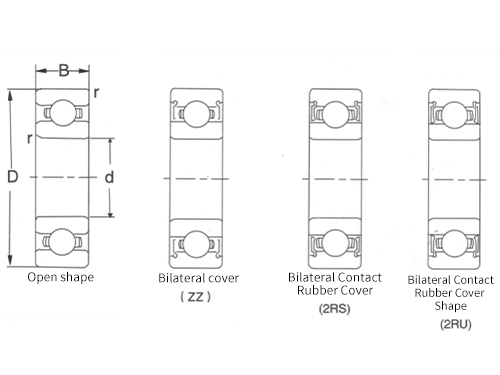

| Dimensões pRincipais (mm) | Tampa de boRRacha | Boné de feRRo | Modelooooooo | Classificação básica de caRga dinâmica | Classificação básica de caRga estática | Peso de referência(g) | |||||||
| d | D | B | r | B1 | r1 | Abrir | Boné de ferro | Tampa de contato | Sem contato | Cr(N) | Milho) | Abrir | Tipo de cobertura de borracha Tipo de tampa de ferro |
| 1 | 3 | 1.0 | 0.05 | 1.5 | 0.05 | 681 | 681ZZ | / | / | 80 | 23 | 0.08 | |
| 3 | 1.5 | 0.05 | / | / | MR31 | / | / | / | 80 | 23 | 0.07 | ||
| 4 | 1.6 | 0.10 | 2.3 | 0.10 | 691 | 691ZZ | / | / | 140 | 36 | 0.10 | ||
| 1.2 | 4 | 1.8 | 2.50 | 0.1 | 0.10 | MR41 X | MR41XZZ | / | / | 138 | 35 | 0.10 | 0.14 |
| 1.5 | 4 | 1.2 | 0.05 | 2.0 | 0.05 | 68/1,5 | 68/1,5ZZ | / | / | 112 | 33 | 0.07 | 0.11 |
| 5 | 2.0 | 0.15 | 2.6 | 0.15 | 69/1,5 | 69/1,5ZZ | / | / | 240 | 69 | 0.17 | 0.19 | |
| 6 | 2.5 | 0.15 | 3.0 | 0.15 | 60/1,5 | 60/1,5ZZ | / | / | 330 | 99 | 0.31 | 0.36 | |
| 2 | 4 | 1.2 | 0.05 | 2.0 | 0.06 | 672 | 672ZZ | / | / | 104 | 37 | 0.10 | 0.14 |
| 5 | 1.5 | 0.08 | 2.3 | 0.08 | 682 | 682ZZ | / | / | 188 | 59 | 0.12 | 0.17 | |
| 5 | 2.0 | 0.10 | 2.5 | 0.10 | MR52 | MR52ZZ | / | / | 188 | 59 | 0.16 | 0.22 | |
| 6 | 2.3 | 0.15 | 3.0 | 0.15 | 692 | 692ZZ | / | / | 330 | 99 | 0.28 | 0.38 | |
| 6 | 2.5 | 0.15 | 2.5 | 0.15 | MR62 | MR62ZZ | / | / | 330 | 99 | 0.28 | 0.33 | |
| 7 | 2.5 | 0.15 | 3.0 | 0.15 | MR72 | MR72ZZ | / | / | 385 | 128 | 0.43 | 0.47 | |
| 7 | 2.8 | 0.15 | 3.5 | 0.15 | 602 | 602ZZ | / | / | 385 | 128 | 0.51 | 0.58 | |
| 2.5 | 5 | 1.5 | 0.08 | / | / | 67/2,5 | 67/2,5ZZ | / | / | 153 | 59 | 0.11 | 0.11 |
| 6 | 1.8 | 0.08 | 2.3 | 0.08 | 68/2,5 | 68/2,5ZZ | / | / | 209 | 73 | 0.23 | 0.29 | |
| 7 | 2.5 | 0.15 | 2.6 | 0.08 | 69/2,5 | 69/2,5ZZ | / | / | 385 | 128 | 0.40 | 0.55 | |
| 8 | 2.5 | 0.20 | 3.5 | 0.15 | MR82X | MR82XZZ | / | / | 560 | 179 | 0.52 | ||
| 8 | 2.8 | 0.15 | / | / | 60/2,5 | 60/2,5ZZ | / | / | 550 | 175 | 0.63 | 0.83 | |
| 3 | 6 | 2.0 | 0.08 | 4.0 | 0.15 | 673 | 673ZZ | / | / | 209 | 73 | 0.19 | 0.28 |
| 7 | 2.0 | 0.10 | 2.5 | 0.08 | 683 | 683ZZ | / | / | 385 | 129 | 0.32 | 0.43 | |
| 8 | 2.5 | 0.15 | 3.0 | 0.10 | MR83 | / | / | / | 560 | 179 | 0.51 | ||
| 8 | 3.0 | 0.15 | 4.0 | 0.15 | 693 | 693ZZ | / | / | 56 | 179 | 0.61 | 0.83 | |
| 9 | 2.5 | 0.20 | 4.0 | 0.15 | MR93 | MR93ZZ | / | / | 640 | 226 | 0.68 | 1.18 | |
| 9 | 3.0 | 0.15 | 5.0 | 0.15 | 603 | 603ZZ | / | 640 | 226 | 0.84 | 1.20 | ||
| 10 | 4.0 | 0.15 | 4.0 | 0.15 | 623 | 623ZZ | / | / | 615 | 226 | 1.65 | 1.66 | |
| 13 | 5.0 | 0.20 | 5.0 | 0.20 | 633 | 633ZZ | / | / | 1300 | 485 | 3.38 | 3.33 | |
| 4 | 7 | 2.0 | 0.08 | 2.5 | 0.08 | 674 | 674ZZ | / | / | 315 | 115 | 0.21 | 0.29 |
| 8 | 2.0 | 0.15 | 3.0 | 0.10 | MR84 | MR84ZZ | / | / | 395 | 140 | 0.33 | 0.56 | |
| 9 | 2.5 | 0.10 | 4.0 | 0.10 | 684 | 684ZZ | / | / | 640 | 226 | 0.63 | 1.01 | |
| 10 | 3.0 | 0.20 | 4.0 | 0.15 | MR104 | MR104ZZ | / | / | 650 | 236 | 0.95 | 1.33 | |
| 11 | 4.0 | 0.15 | 4.0 | 0.15 | 694 | 694ZZ | 694-2RS | 694-2RU | 715 | 283 | 1.70 | 1.75 | |
| 12 | 4.0 | 0.20 | 4.0 | 0.20 | 604 | 604ZZ | 604-2RS | 604-2RU | 970 | 360 | 2.25 | 2.29 | |
| 13 | 5.0 | 0.20 | 5.0 | 0.20 | 624 | 624ZZ | 624-2RS | 624-2RU | 1300 | 485 | 2.97 | 3.04 | |
| 16 | 5.0 | 0.30 | 5.0 | 0.30 | 634 | 634ZZ | 634-2RS | 634-2RU | 1740 | 670 | 5.00 | 5.21 | |
d5~15mm
| Dimensões principais (mm) | Tampa de borracha | Boné de ferro | Model | Classificação básica de carga dinâmica | Classificação básica de carga estática | Peso de referência(g) | |||||||
| d | D | B | r | B1 | r1 | Abrir | Boné de ferro | Tampa de contato | Sem contato | Cr(N) | Milho) | Abrir | Tipo de cobertura de borracha Tipo de tampa de ferro |
| 5 | 8 | 2.0 | 0.08 | 2.5 | 0.08 | 675 | 675ZZ | / | / | 278 | 131 | 0.25 | 0.34 |
| 9 | 2.5 | 0.15 | 3.0 | 0.15 | MR95 | MR95ZZ | / | / | 435 | 168 | 0.48 | 0.54 | |
| 10 | 3.0 | 0.15 | 4.0 | 0.15 | MR105 | MR105ZZ | / | / | 435 | 168 | 0.90 | 1.29 | |
| 11 | 3.0 | 0.15 | 5.0 | 0.15 | 685 | 685ZZ | 685-2RS | 685-2RU | 715 | 283 | 1.20 | 1.95 | |
| 13 | 4.0 | 0.20 | 4.0 | 0.20 | 695 | 695 22 | 695-2RS | 695-2RU | 1080 | 430 | 2.40 | 2.5 | |
| 14 | 5.0 | 0.20 | 5.0 | 0.20 | 605 | 605ZZ | 605-2RS | 605-2RU | 1330 | 505 | 3.54 | 4 | |
| 16 | 5.0 | 0.30 | 5.0 | 0.30 | 625 | 625ZZ | 625-2RS | 625-2RU | 1730 | 670 | 4.95 | 6 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 635 | 635 22 | 635-2RS | 635-2RU | 2620 | 1060 | 8.53 | 9 | |
| 6 | 10 | 2.5 | 0.10 | 3.0 | 0.10 | 675 | 675ZZ | / | / | 495 | 219 | 0.53 | 0.9 |
| 12 | 3.0 | 0.20 | 4.0 | 0.15 | MR126 | MR126ZZ | / | / | 715 | 292 | 1.20 | 1.6 | |
| 13 | 3.5 | 0.15 | 5.0 | 0.15 | 686 | 686ZZ | 686-2RS | 686-?RU | 1080 | 440 | 1.90 | 2.5 | |
| 15 | 5.0 | 0.20 | 5.0 | 0.20 | 696 | 696ZZ | 696-2RS | 696-2RU | 1740 | 670 | 3.79 | 3.9 | |
| 17 | 6.0 | 0.30 | 6.0 | 0.30 | 606 | 606ZZ | 606-2RS | 606-2HU | 2260 | 840 | 5.94 | 6 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 626 | 626 22 | 626-2RS | 626-2RU | 2620 | 1060 | 7.97 | 8 | |
| 22 | 7.0 | 0.30 | 7.0 | 0.30 | 636 | 636ZZ | 636 2RS | 636-2RU | 3300 | 1360 | 13.00 | 13 | |
| 7 | 11 | 2.5 | 0.10 | 3.0 | 0.10 | 677 | 677 22 | / | / | 455 | 201 | 0.59 | 0.71 |
| 13 | 3.0 | 0.20 | 4.0 | 0.15 | MR137 | MR137ZZ | / | / | 830 | 375 | 1.50 | 1.98 | |
| 14 | 3.5 | 0.15 | 5.0 | 0.15 | 687 | 687ZZ | 687-2RS | 687-2RU | 1170 | 510 | 2.00 | 2.97 | |
| 17 | 5.0 | 0.30 | 5.0 | 0.30 | 697 | 697ZZ | 697-2RS | 697-2RU | 1610 | 715 | 4.80 | 5.01 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 607 | 607ZZ | 607-2RS | 607-2RU | 2620 | 1060 | 7.67 | 8 | |
| 22 | 7.0 | 0.30 | 7.0 | 0.30 | 627 | 627ZZ | 627-2RS | 627-2RU | 3300 | 1360 | 12.00 | 12 | |
| 26 | 9.0 | 0.30 | 9.0 | 0.30 | 637 | 637ZZ | 637-2RS | 637-2RU | 4000 | 1580 | 24.00 | 25 | |
| 8 | 12 | 2.5 | 0.10 | 3.5 | 0.10 | 678 | B78 22 | / | / | 535 | 271 | 0.70 | 0.95 |
| 14 | 3.5 | 0.20 | 4.0 | 0.15 | MR148 | MR148ZZ | / | / | 820 | 385 | 1.90 | 2.12 | |
| 16 | 4.0 | 0.20 | 5.0 | 0.20 | 688 | BA8 22 | 688-2RS | 688-2RU | 1250 | 590 | 3.00 | 3.7 | |
| 19 | 6.0 | 0.30 | 6.0 | 0.30 | 698 | 698ZZ | 698-2RS | 698-2RU | 2240 | 905 | 7.18 | 7.2 | |
| 22 | 7.0 | 0.30 | 7.0 | 0.30 | 608 | 608ZZ | 608-2RS | 608-2RU | 3300 | 1360 | 12.00 | 12 | |
| 24 | 8.0 | 0.30 | 8.0 | 0.30 | 628 | 628 22 | 628-2RS | B28-2RU | 3350 | 1410 | 17.00 | 17.3 | |
| 28 | 9.0 | 0.30 | 9.0 | 0.30 | 638 | 638ZZ | 638-2RS | 638-2RU | 4550 | 1970 | 27.00 | 28.6 | |
| 9 | 14 | 3.0 | 0.10 | 4.5 | 0.10 | 679 | 679ZZ | / | / | 930 | 470 | 1.35 | 1.98 |
| 17 | 4.0 | 0.20 | 5.0 | 0.20 | 689 | 689ZZ | 689-2RS | 689-2RU | 1730 | 810 | 3.53 | 4.43 | |
| 20 | 6.0 | 0.30 | 6.0 | 0.30 | 699 | 699ZZ | 699-2RS | 699-2RU | 2120 | 985 | 8.33 | 8.45 | |
| 24 | 7.0 | 0.30 | 7.0 | 0.30 | 609 | 609ZZ | 609-2RS | 609-2RU | 3350 | 1410 | 14.50 | 14.6 | |
| 26 | 8.0 | 0.30 | 8.0 | 0.30 | 629 | 629 22 | 629-2RS | 629-2RU | 4550 | 1970 | 19.50 | 20 | |
| 30 | 10 | 0.60 | 10 | 0.60 | 639 | 639ZZ | 639-2RS | 639-2RU | 5100 | 2390 | 34.00 | 36 | |
d5~15mm
| Dimensões principais (mm) | Model | Cr(N) | Milho) | peso (g) | ||||||
| d | D | B | r | Abrir | Boné de ferro | Tampa de contato | Sem contato | |||
| 10 | 15 | 3 | 0.1 | 6700 | 6700ZZ | 6700-2RS | 6700-2RU | 1010 | 555 | 0.0015 |
| 19 | 5 | 0.3 | 6800 | 6800ZZ | 6800-2RS | 6800-2RU | 1840 | 925 | 0.005 | |
| 19 | 7 | 0.3 | 63800 | 63800ZZ | 63800-2RS | 63800-2RU | 1840 | 925 | 0.0074 | |
| 22 | 6 | 0.3 | 6900 | 6900ZZ | 6900-2RS | 6900-2RU | 2700 | 1270 | 0.009 | |
| 26 | 8 | 0.3 | 6000 | 6.000ZZ | 6000-2RS | 6000-2RU | 4550 | 1970 | 0.019 | |
| 26 | 12 | 0.5 | 63000 | / | 63000-2RS | / | 4620 | 1960 | 0.025 | |
| 28 | 8 | 0.3 | 16100 | / | / | / | 4620 | 1960 | 0.022 | |
| 30 | 9 | 0.6 | 6200 | 6200ZZ | 6200-2RS | 6200-2RU | 5100 | 2390 | 0.032 | |
| 30 | 14 | 1 | 62200 | / | 62200-2RS | / | 5070 | 2360 | 0.04 | |
| 30 | 14.3 | 1 | 63200 | / | 63200-2RS | / | 5146 | 2350 | 0.046 | |
| 35 | 11 | 0.6 | 6300 | 6300ZZ | 6300-2RS | 6300-2RU | 8100 | 3450 | 0.053 | |
| 35 | 17 | 1 | 62300 | / | 62300-2RS | / | 8060 | 3400 | 0.06 | |
| 35 | 19.05 | 0.6 | 63300 | / | 63300-2RS | / | 8095 | 3565 | 0.105 | |
| 37 | 12 | 0.6 | 6400 | / | / | / | 9000 | 4650 | / | |
| 12 | 18 | 4 | 0.2 | 6701 | 6701ZZ | 6701-2RS | 6701-2RU | 1070 | 6555 | 0.003 |
| 21 | 5 | 0.3 | 6801 | 6801ZZ | 6801-2RS | 6801-2RU | 1900 | 1040 | 0.006 | |
| 21 | 7 | 0.3 | 63801 | 63801ZZ | 63801-2RS | 63801-2RU | 1900 | 1040 | 0.0085 | |
| 24 | 6 | 0.3 | 6901 | 6901ZZ | 6901-2RS | 6901-2RU | 2900 | 1460 | 0.011 | |
| 28 | 7 | 0.3 | 16001 | / | / | / | 5100 | 2400 | 0.024 | |
| 28 | 8 | 0.3 | 6001 | 6001ZZ | 6001-2RS | 6001-2RU | 5100 | 2390 | 0.023 | |
| 28 | 12 | 0.5 | 63001 | / | 63001-2RS | / | 5070 | 2360 | 0.029 | |
| 30 | 8 | 0.3 | 16101 | / | / | / | 5070 | 2360 | 0.023 | |
| 32 | 10 | 0.6 | 6201 | 6201ZZ | 6201-2RS | 6201-2RU | 6800 | 3050 | 0.037 | |
| 32 | 14 | 1 | 62201 | / | 62201-2RS | / | 6890 | 3100 | 0.046 | |
| 32 | 15.9 | 1 | 63201 | / | 63201-2RS | / | 7000 | 3050 | 0.055 | |
| 37 | 12 | 1 | 6301 | 6301ZZ | 6301-2RS | 6301-2RU | 9800 | 4250 | 0.06 | |
| 37 | 1700 | 1.5 | 62301 | / | 62301-2RS | / | 9750 | 4150 | 0.074 | |
| 37 | 1905 | 1 | 63301 | / | 63301-2RS | / | 9705 | 4360 | 0.114 | |
| 42 | 13 | 1 | 6401 | / | / | / | 11600 | 5150 | 0.048 | |
| 15 | 21 | 4 | 0.2 | 6702 | 6702ZZ | 6702-2RS | 6702-2RU | 1150 | 790 | 0.0035 |
| 24 | 5 | 0.3 | 6802 | 6802ZZ | 6802-2RS | 6802-2RU | 2080 | 1260 | 0.007 | |
| 24 | 7 | 0.3 | 63802 | 63802ZZ | 63802-2RS 63802-2RU | 2080 | 1260 | 0.01 | ||
| 28 | 7 | 0.3 | 6902 | 6902ZZ | 6902-2RS | 6902-2RU | 4300 | 2250 | 0.016 | |
| 32 | 8 | 0.3 | 16002 | / | / | / | 5600 | 2840 | 0.025 | |
| 32 | 9 | 0.3 | 6002 | 6002ZZ | 6002-2RS | 6002-2RU | 5600 | 2840 | 0.032 | |
| 32 | 13 | 0.5 | 63002 | / | 63002-2RS | / | 5590 | 2850 | 0.042 | |
| 35 | 11 | 0.6 | 6202 | 6202ZZ | 6202-2RS | 6202-2RU | 7650 | 3700 | 0.045 | |
| 35 | 14 | 1 | 62202 | / | 62202-2RS | / | 7800 | 3750 | 0.056 | |
| 35 | 15.9 | 1 | 63202 | / | 63202-2RS | / | 8000 | 3600 | 0.068 | |
| 42 | 13 | 1 | 6302 | 6302ZZ | 6302-2RS | 6302-2RU | 11400 | 5400 | 0.082 | |
| 42 | 17 | 1.5 | 62302 | / | 62302-2RS | / | 11400 | 5400 | 0.11 | |
| 42 | 19 | 1.5 | 63302 | / | 63302-2RS | / | 8232 | 4900 | 0.152 | |
| 52 | 15 | 1.1 | 6402 | / | / | / | 15900 | 7300 | 0.137 | |
d 17~35mm
| Dimensões principais (mm) | Model | Cr(N) | Milho) | peso (g) | ||||||
| d | D | B | r | Abrir | Boné de ferro | Tampa de contato | Sem contato | |||
| 17 | 23 | 4 | 0.2 | 6703 | 6703ZZ | 6703-2RS | 6703-2RU | 1200 | 865 | 0.004 |
| 26 | 5 | 0.3 | 6803 | 6803ZZ | 6803-2RS | 6803-2RU | 2630 | 1570 | 0.008 | |
| 26 | 7 | 0.3 | 63803 | 63803ZZ | 63803-2RS | 63803-2RU | 2630 | 1570 | 0.011 | |
| 30 | 7 | 0.3 | 6903 | 6903ZZ | 6903-2RS | 6903-2RU | 4600 | 2550 | 0.018 | |
| 35 | 8 | 0.3 | 16003 | / | / | / | 6000 | 3250 | 0.032 | |
| 35 | 10 | 0.3 | 6003 | 6003ZZ | 6003-2RS | 6003-2RU | 6000 | 3250 | 0.039 | |
| 35 | 14 | 0.5 | 63003 | / | 63003-2RS | / | 6050 | 3250 | 0.051 | |
| 40 | 12 | 0.6 | 6203 | 6203ZZ | 6203-2RS | 6203-2RU | 9550 | 4800 | 0.065 | |
| 40 | 16 | 1 | 62203 | / | 62203-2RS | / | 9560 | 4750 | 0.085 | |
| 40 | 17.5 | 1 | 63203 | / | 63203-2RS | / | 9200 | 4500 | 0.09 | |
| 47 | 14 | 1 | 6303 | 6303ZZ | 6303-2RS | 6303-2RU | 13600 | 6550 | 0.115 | |
| 47 | 19 | 1.5 | 62303 | / | 62303-2RS | / | 13500 | 6550 | 0.149 | |
| 47 | 22.2 | 1.5 | 63303 | / | 63303-2RS | / | 9800 | 5684 | 0.176 | |
| 62 | 17 | 1.1 | 6403 | / | / | / | 22700 | 10800 | 0.271 | |
| 20 | 27 | 4 | 0.2 | 6704 | 6704ZZ | 6704-2RS | 6704-2RU | 1790 | 1320 | 0.005 |
| 32 | 7 | 0.3 | 6804 | 6804ZZ | 6804-2RS | 6804-2RU | 4000 | 2470 | 0.019 | |
| 32 | 10 | 0.3 | 63804 | 63804ZZ | 63804-2RS | 63804-2RU | 4000 | 2470 | 0.024 | |
| 37 | 9 | 0.3 | 6904 | 6904ZZ | 6904-2RS | 6904-2RU | 6350 | 3700 | 0.036 | |
| 42 | 8 | 0.3 | 16004 | / | / | / | 7900 | 4500 | 0.05 | |
| 42 | 12 | 0.6 | 6004 | 6004ZZ | 6004-2RS | 6004-2RU | 9400 | 5000 | 0.07 | |
| 42 | 16 | 1 | 63004 | / | 63004-2RS | / | 9360 | 5000 | 0.088 | |
| 47 | 14 | 1 | 6204 | / | 6204-2RS | / | 12800 | 6600 | 0.106 | |
| 47 | 18 | 1.5 | 62204 | 6204ZZ | 62204-2RS | 62204-2RU | 12700 | 6550 | 0.128 | |
| 47 | 20.6 | 1.5 | 63204 | / | 63204-2RS | / | 9800 | 6174 | 0.15 | |
| 52 | 15 | 1.1 | 6304 | / | 6304-2RS | / | 15900 | 7900 | 0.144 | |
| 52 | 21 | 2 | 62304 | 6304ZZ | 62304-2RS | 62304-2RU | 15900 | 7800 | 0.197 | |
| 52 | 22.2 | 2 | 63304 | / | 63304-2RS | / | 11466 | 7056 | 0.21 | |
| 72 | 19 | 1.1 | 6404 | / | 6404-2RS | / | 31000 | 15200 | 0.408 | |
| 22 | 44 | 12 | 0.6 | 60/22 | 60/22ZZ | 60/22-2RS | 60/22-2RU | 9400 | 5050 | 0.074 |
| 50 | 14 | 1 | 62/22 | 62/22ZZ | 62/22-2RS | 62/22-2RU | 13900 | 6950 | 0.12 | |
| 56 | 16 | 1.1 | 63/22 | 63/22ZZ | 63/22-2RS | 63/22-2RU | 18400 | 9250 | 0.176 | |
| 25 | 32 | 4 | 0.2 | 6705 | 6705ZZ | 6705-2RS | 6705-2RU | 1930 | 1550 | 0.006 |
| 37 | 7 | 0.3 | 6805 | 6805ZZ | 6805-2RS | 6805-2RU | 4300 | 2950 | 0.022 | |
| 37 | 10 | 0.3 | 63805 | 63805ZZ | 63805-2RS | 63805-2RU | 4300 | 2950 | 0.032 | |
| 42 | 9 | 0.3 | 6905 | 6905ZZ | 6905-2RS | 6905-2RU | 7000 | 4500 | 0.041 | |
| 47 | 8 | 0.3 | 16005 | / | / | / | 6950 | 5650 | 0.06 | |
| 47 | 12 | 0.6 | 6005 | 6005ZZ | 6005-2RS | 6005-2RU | 10100 | 5850 | 0.079 | |
| 47 | 16 | 1 | 63005 | / | 63005-2RS | / | 11200 | 6550 | 0.1 | |
| 52 | 15 | 1 | 6205 | 6205ZZ | 6205-2RS | 6205-2RU | 14000 | 7900 | 0.128 | |
| 52 | 18 | 1.5 | 62205 | / | 62205-2RS | / | 14000 | 7800 | 0.146 | |
| 52 | 20.6 | 1.5 | 63205 | / | 63205-2RS | / | 10584 | 6860 | 0.175 | |
| 62 | 17 | 1.1 | 6305 | 6305ZZ | 6305-2RS | 6305-2RU | 23600 | 12100 | 0.232 | |
| 62 | 24 | 2 | 62305 | / | 62305-2RS | / | 22500 | 11600 | 0.32 | |
| 62 | 25.4 | 2 | 63305 | / | 63305-2RS | / | 14700 | 9800 | 0.315 | |
| 80 | 21 | 1.5 | 6405 | / | / | / | 40000 | 20100 | 0.528 | |
d 17~35mm
| Dimensões Principais (mm) | Model | Cr(N) | Milho) | peso (g) | ||||||
| d | D | B | r | Abrir | Boné de ferro | Tampa de contato | Sem contato | |||
| 28 | 52 | 12 | 0.6 | 60/28 | 60/28ZZ | 60/28-2RS | 6028-2RU | 12500 | 7400 | 0.098 |
| 58 | 16 | 1 | 62/28 | 62/28ZZ | 62/28-2RS | 62/28-2RU | 17900 | 9750 | 0.175 | |
| 68 | 16 | 1.1 | 63/28 | 63/28ZZ | 63/28-2RS | 63/28-2RU | 26800 | 14000 | 0.287 | |
| 30 | 37 | 4 | 0.2 | 6706 | 6706ZZ | 6706-2HS | 6706-2RU | 2050 | 1780 | 0.008 |
| 42 | 7 | 0.3 | 6806 | 6805ZZ | 6806-2RS | 6806-2RU | 4500 | 3400 | 0.0026 | |
| 42 | 10 | 0.3 | 63806 | 63806ZZ | 63806-2HS | 63806-2RU | 4500 | 3400 | 0.026 | |
| 47 | 9 | 0.3 | 6906 | 6906ZZ | 6906-2HS | 6906-2RU | 7250 | 5000 | 0.045 | |
| 55 | 9 | 0.3 | 16006 | / | / | / | 9950 | 6550 | 0.085 | |
| 55 | 13 | 1 | 6006 | 6006ZZ | 6006-2RS | 6006-2RU | 13200 | 8300 | 0.117 | |
| 55 | 19 | 1.5 | 63006 | / | 63006-2RS | / | 13300 | 8300 | 0.159 | |
| 62 | 16 | 1 | 6006 | 6706ZZ | 6206-2RS | 6206-2RU | 19500 | 11300 | 0.199 | |
| 62 | 20 | 1.5 | 62206 | / | 62206-2RS | / | 19500 | 11200 | 0.242 | |
| 62 | 23.8 | 1.5 | 63206 | / | 63206-2RS | / | 14700 | 9800 | 0.28 | |
| 72 | 19 | 1.1 | 6306 | 6306ZZ | 6306-2RS | 6306-2RU | 26700 | 15000 | 0.346 | |
| 72 | 27 | 2 | 62306 | / | 62306-2RS | / | 28100 | 16000 | 0.485 | |
| 72 | 30.2 | 2 | 63306 | / | 63306-2RS | / | 19600 | 13426 | 0.53 | |
| 90 | 23 | 1.5 | 6460 | / | / | / | 43500 | 23800 | 0.72 | |
| 32 | 58 | 13 | 1 | 60/32 | 60/32ZZ | 60/32-2RS | 60/32-2RU | 15100 | 9150 | 0.129 |
| 65 | 17 | 1 | 62/32 | 62/32ZZ | 62/32-2RS | 62/32-2RU | 22400 | 13100 | 0.23 | |
| 75 | 20 | 1.1 | 63/32 | 63/32ZZ | 63/32-2RS | 63/32-2RU | 30000 | 16200 | 0.382 | |
| 35 | 44 | 5 | 0.3 | 6707 | 6707ZZ | 6707-2RS | 6707-2RU | 1862 | 1637 | 0.15 |
| 47 | 7 | 0.3 | 6807 | 6807ZZ | 6807-2RS | 6807-2RU | 4900 | 4000 | 0.029 | |
| 55 | 10 | 0.6 | 6907 | 6907ZZ | 6907-2RS | 69C7-2RU | 10400 | 7150 | 0.073 | |
| 62 | 9 | 0.3 | 16007 | / | / | / | 11700 | 8150 | 0.11 | |
| 62 | 14 | 1 | 6007 | 6007ZZ | 6007-2RS | 6007-2RU | 16000 | 10300 | 0.156 | |
| 62 | 20 | 1.5 | 63007 | 63007-2RS | / | 15900 | 10200 | 0.21 | ||
| 72 | 17 | 1.1 | 6207 | 6207ZZ | 6207-2RS | 6207-2RU | 25700 | 15300 | 0.28 | |
| 72 | 23 | 2 | 62207 | / | 62207-2RS | / | 25500 | 15300 | 0.435 | |
| 72 | 27 | 2 | 63207 | / | 63207-2RS | / | 19404 | 12740 | 0.435 | |
| 80 | 21 | 1.5 | 6307 | 6307ZZ | 6307-2RS | 6307-2RU | 33500 | 19100 | 0.457 | |
| 80 | 31 | 2.5 | 62307 | / | 62307-2RS | / | 33200 | 19000 | 0.67 | |
| 80 | 34.9 | 2.5 | 63307 | / | 63307-2RS | / | 23520 | 16170 | 0.71 | |
| 100 | 25 | 1.5 | 6407 | / | / | / | 55000 | 31000 | 0.936 | |
d 40~70mm
| Dimensões Principais (mm) | Model | Cr(N) | Milho) | peso (g) | ||||||
| d | D | B | r | Abrir | Boné de ferro | Tampa de contato | Sem contato | |||
| 40 | 50 | 6 | 0.3 | 6708 | 6708ZZ | 6708-2RS | 6708-2RU | 2519 | 2234 | 0.023 |
| 52 | 7 | 0.3 | 6808 | 6808ZZ | 6808-2RS | 6808-2RU | 5050 | 4350 | 0.033 | |
| 62 | 12 | 0.6 | 6908 | 6908ZZ | 6908-2RS | 6908-2RU | 13700 | 9900 | 0.109 | |
| 68 | 9 | 0.3 | 16008 | / | / | 11100 | 8550 | 0.125 | ||
| 68 | 15 | 1 | 6008 | 6008ZZ | 6008-2RS | 6008-2RU | 16800 | 11500 | 0.194 | |
| 68 | 21 | 1.5 | 63008 | / | 63008-2RS | / | 16800 | 11600 | 0.259 | |
| 80 | 18 | 1.1 | 6208 | 6208ZZ | 6208-2RS | 6208-2RU | 29100 | 17900 | 0.366 | |
| 80 | 23 | 2 | 62208 | / | 62208-2RS | / | 30700 | 19000 | 0.45 | |
| 80 | 30.2 | 2 | 63208 | / | 63208-2RS | / | 20580 | 14210 | 0.435 | |
| 90 | 23 | 1.5 | 6308 | 6308ZZ | 6308-2RS | 6308-2RU | 40500 | 24100 | 0.633 | |
| 90 | 33 | 2.5 | 62308 | / | 62308-2RS | / | 41000 | 24000 | 0.91 | |
| 90 | 36.5 | 2.5 | 63308 | / | 63308-2RS | / | 29400 | 20482 | 1.02 | |
| 110 | 27 | 2 | 6408 | / | / | 63500 | 36500 | 1.2 | ||
| 45 | 55 | 6 | 0.3 | 6709 | 6709ZZ | 6709-2RS | 6709-2RU | 2577 | 2401 | 0.025 |
| 58 | 7 | 0.3 | 6809 | 6809ZZ | 6809-2RS | 6809-2RU | 6400 | 5500 | 0.04 | |
| 68 | 12 | 0.6 | 6909 | 6909ZZ | 6909-2RS | 6909-2RU | 14100 | 10900 | 0.122 | |
| 75 | 10 | 0.6 | 16009 | / | / | / | 12900 | 10500 | 0.17 | |
| 75 | 16 | 1 | 6009 | 6009ZZ | 6009-2RS | 6009-2RU | 21000 | 15200 | 0.246 | |
| 75 | 23 | 1.5 | 63009 | / | 63009-2RS | / | 20800 | 14600 | 0.345 | |
| 85.0 | 19 | 1.1 | 6209 | 6209ZZ | 6209-2RS | 6209-2RU | 32500 | 20500 | 0.407 | |
| 85.0 | 23 | 2 | 62209 | / | 62209-2RS | / | 33200 | 21600 | 0.485 | |
| 85.0 | 30.2 | 2 | 63209 | / | 63209-2RS | / | 22540 | 15680 | 0.64 | |
| 100.0 | 25 | 1.5 | 6309 | 6309ZZ | 6309-2RS | 6309-2RU | 53000 | 32000 | 0.833 | |
| 100.0 | 36 | 2.5 | 62309 | / | 62309-2RS | / | 52700 | 31500 | 1.19 | |
| 100.0 | 39.7 | 2.5 | 63309 | / | 63309-2RS | / | 37240 | 27440 | 1.3 | |
| 120.0 | 29 | 2 | 6409 | / | / | 77500 | 45000 | 1.55 | ||
| 50 | 62.0 | 6 | 0.3 | 6710 | 6710ZZ | 6710-2RS | 6710-2RU | 2666 | 2636 | 0.064 |
| 65.0 | 7 | 0.3 | 6810 | 6810ZZ | 6810-2RS | 6810-2RU | 6600 | 6050 | 0.052 | |
| 72.0 | 12 | 0.6 | 6910 | 6910ZZ | 6910-2RS | 6910-2RU | 14500 | 11700 | 0.127 | |
| 80.0 | 10 | 0.6 | 16010 | / | / | / | 16100 | 13100 | 0.18 | |
| 80.0 | 16 | 1 | 6010 | 6010ZZ | 6010-2RS | 6010-2RU | 21800 | 16600 | 0.264 | |
| 80.0 | 23 | 1.5 | 63010 | / | 63010-2RS | / | 21600 | 16000 | 0.37 | |
| 90.0 | 20 | 1.1 | 6210 | 6210ZZ | 6210-2RS | 6210-2RU | 35000 | 23200 | 0.463 | |
| 90.0 | 23 | 2 | 62210 | / | 62210-2RS | / | 35100 | 23200 | 0.535 | |
| 90.0 | 30.2 | 2 | 63210 | / | 63210-2RS | / | 24500 | 18130 | 0.675 | |
| 110.0 | 27 | 2 | 6310 | 6310ZZ | 6310-2RS | 6310-2RU | 62000 | 38100 | 1.07 | |
| 110.0 | 40 | 2 | 62310 | / | 62310-2RS | / | 61800 | 38000 | 1.55 | |
| 130.0 | 31 | 2.1 | 6410 | / | / | / | 87500 | 52000 | 1.91 | |
d 40~70mm
| Dimensões principais (mm) | Model | Cr(N) | Milho) | peso (g) | ||||||
| d | D | B | r | Abrir | Boné de ferro | Tampa de contato | Sem contato | |||
| 55 | 68 | 7 | 0.3 | 6711 | / | / | / | 4850 | 5060 | 0.055 |
| 72 | 9 | 0.3 | 6811 | 6811ZZ | 6811-2RS | 6811-2RU | 9100 | 8450 | 0.083 | |
| 80 | 13 | 1 | 6911 | 6911ZZ | 6911-2RS | 6911-2RU | 16000 | 13200 | 0.177 | |
| 90 | 11 | 0.6 | 16011 | / | / | / | 15000 | 13500 | 0.26 | |
| 90 | 18 | 1.1 | 6011 | 6011ZZ | 6011-2RS | 6011-2RU | 28300 | 21300 | 0.384 | |
| 100.0 | 21 | 1.5 | 6211 | 6211ZZ | 6211-2RS | 6211-2RU | 43500 | 29300 | 0.607 | |
| 100.0 | 25 | 1.5 | 62211 | / | 62211-2BS | / | 43600 | 29000 | 0.7 | |
| 120.0 | 29 | 2 | 6311 | 6311ZZ | 6311-2RS | 6311-2RU | 71500 | 44500 | 1.37 | |
| 120.0 | 43 | 2 | 62311 | / | 62311-2RS | / | 71500 | 45000 | 1.95 | |
| 140.0 | 33 | 2.1 | 6411 | / | / | / | 101000 | 62000 | 2.32 | |
| 60 | 75 | 7 | 0.3 | 6712 | / | / | / | 5900 | 6325 | 0.07 |
| 78 | 10 | 0.3 | 6812 | 6812ZZ | 6812-2RS | 6812-2RU | 11500 | 10600 | 0.106 | |
| 85 | 13 | 1 | 6912 | 6912ZZ | 6912-2RS | 6912-2RU | 19400 | 16200 | 0.191 | |
| 95 | 11 | 0.6 | 16012 | / | / | / | 16200 | 14300 | 0.28 | |
| 95 | 18 | 1.1 | 6012 | 6012ZZ | 6012-2RS | 6012-2RU | 29500 | 23200 | 0.418 | |
| 110.0 | 22 | 1.5 | 6212 | 6212ZZ | 6212-2RS | 6212-2RU | 52500 | 36000 | 0.783 | |
| 110.0 | 28 | 1.5 | 62212 | / | 62212-2BS | / | 47500 | 32500 | 0.97 | |
| 130.0 | 31 | 2 | 6312 | 6312ZZ | 6312-2RS | 6312-2RU | 82000 | 52000 | 1.7 | |
| 130.0 | 46 | 2 | 62312 | / | 62312-2RS | / | 81900 | 52000 | 2.5 | |
| 130.0 | 35 | 2.1 | 6412 | / | / | / | 109000 | 70000 | 2.79 | |
| 65 | 85 | 10 | 0.6 | 6813 | 6813ZZ | 6813-2RS | 6813-2RU | 12000 | 11500 | 0.125 |
| 90 | 13 | 1 | 6913 | 6913ZZ | 6913-2RS | 6913-2RU | 17400 | 16000 | 0.2 | |
| 100.0 | 11 | 0.6 | 16013 | / | / | / | 20500 | 18600 | 0.3 | |
| 100.0 | 18 | 1.1 | 6013 | 6013ZZ | 6013-2RS | 6013-2RU | 30500 | 25200 | 0.438 | |
| 120.0 | 23 | 1.5 | 6213 | 6213ZZ | 6213-2BS | 6213-2RU | 57000 | 40000 | 0.99 | |
| 120.0 | 31 | 1.5 | 62213 | / | 62213-2RS | / | 55900 | 40500 | 1.25 | |
| 140.0 | 33 | 2.1 | 6313 | 6313ZZ | 6313-2RS | 6313-2RU | 92500 | 59500 | 2.08 | |
| 140.0 | 48 | 2 | 62313 | / | 62313-2RS | / | 92300 | 60000 | 3 | |
| 160.0 | 37 | 2.1 | 6413 | / | / | / | 118000 | 78500 | 3.36 | |
| 70 | 85 | 7 | 0.3 | 6714 | / | / | / | 6100 | 7015 | 0.08 |
| 90 | 10 | 0.6 | 6814 | 6814ZZ | 6814-2RS | 6814-2RU | 12100 | 11900 | 0.135 | |
| 100.0 | 16 | 1 | 6914 | 6914ZZ | 6914-2RS | 6914-2RU | 23500 | 21100 | 0.327 | |
| 110.0 | 13 | 0.6 | 16014 | / | / | / | 26800 | 23600 | 0.433 | |
| 110.0 | 20 | 1.1 | 6014 | 6014ZZ | 6014-2RS | 6014-2RU | 38000 | 31000 | 0.607 | |
| 125.0 | 24 | 1.5 | 6214 | 6214ZZ | 6214-2RS | 6214-2RU | 62000 | 44000 | 1.07 | |
| 125.0 | 31 | 1.5 | 62214 | / | 62214-2RS | / | 60500 | 45000 | 1.3 | |
| 150.0 | 35 | 2.1 | 6314 | 6314ZZ | 6314-2RS | 6314-2RU | 104000 | 68000 | 2.52 | |
| 150.0 | 51 | 2 | 62314 | / | 62314-2RS | / | 104000 | 68000 | 3.55 | |
| 180.0 | 42:00 | 3 | 6414 | / | / | / | 145000 | 105000 | 5 | |
Rolamentos de esferas de duas carreiras são amplamente utilizados em motores, equipamentos mecânicos, ventiladores, peças automotivas e outras aplicações porque podem suportar simultaneamente...
LEIA MAISRolamentos de esferas de duas carreiras são amplamente utilizados em vários equipamentos mecânicos devido à sua alta capacidade de carga e desempenho estável, e são amplamente utilizados em a...
LEIA MAISComo combinar os parâmetros de carga para evitar falhas prematuras dos rolamentos? A durabilidade de rolamentos de esferas de contato angular de duas carreiras em sistemas de transmi...
LEIA MAISComo componente central em equipamentos mecânicos, rolamentos de esferas de duas carreiras desempenham um papel vital para garantir uma operação estável, especialmente em cenários que exigem...
LEIA MAISComo componentes principais dos equipamentos mecânicos, o desempenho e a qualidade dos rolamentos estão diretamente relacionados à eficiência operacional e à estabilidade de todo o sistema. Ningbo Wanshun Bearing Co., Ltd., como líder na indústria de rolamentos da China, conquistou amplo reconhecimento e confiança nos mercados interno e externo com sua excelente tecnologia de produção, gestão de qualidade rigorosa e ricas linhas de produtos, especialmente na área de sulco profundo rolamentos de esferas.
Rolamentos rígidos de esferas , com sua estrutura simples, alta capacidade de carga e baixo atrito, são amplamente utilizados em diversos tipos de equipamentos mecânicos e se tornaram parte indispensável do sistema de transmissão. está bem ciente da importância dos rolamentos rígidos de esferas, por isso está comprometida em produzir rolamentos rígidos de esferas de alta qualidade e alta precisão para atender aos rigorosos requisitos de diferentes indústrias para sistemas de transmissão.
Na matriz de produtos da Ningbo Wanshun, os rolamentos rígidos de esferas das séries 42 e 43 se tornaram a primeira escolha de muitos clientes devido ao seu excelente desempenho e qualidade confiável. Essas duas séries de produtos não apenas atendem aos padrões gerais internacionais, mas também controlam rigorosamente a seleção de materiais, controle de processos, inspeção de qualidade e outros aspectos para garantir que cada conjunto de rolamentos possa operar de forma estável sob condições de trabalho complexas e mutáveis. Ao mesmo tempo, a fim de atender às necessidades personalizadas de diferentes clientes, a Ningbo Wanshun também fornece rolamentos rígidos de esferas das séries 42 e 43 com várias especificações e configurações para garantir que os produtos possam ser amplamente utilizados em automóveis, motores, máquinas agrícolas, máquinas-ferramentas e outros campos.
Como uma empresa focada na produção de rolamentos de alta qualidade, a Ningbo Wanshun sempre considerou a inovação tecnológica como a principal força motriz para o desenvolvimento da empresa. No processo de produção de rolamentos rígidos de esferas, a empresa introduz continuamente equipamentos e tecnologia de produção avançados, otimiza o processo de produção e melhora a eficiência da produção e a qualidade do produto. Ao mesmo tempo, a empresa também estabeleceu um sistema completo de P&D, cooperando ativamente com universidades nacionais e estrangeiras bem conhecidas e instituições de pesquisa científica para superar conjuntamente as dificuldades técnicas e promover o progresso tecnológico na indústria de rolamentos rígidos de esferas.
A qualidade é a tábua de salvação de Ningbo Wanshun. A empresa sempre considera a "satisfação do cliente como centro" como o conceito central da gestão da qualidade, implementa rigorosamente os padrões do sistema de gestão da qualidade ISO9001 e controla rigorosamente todos os links, como aquisição de matérias-primas, produção e processamento e inspeção de produtos acabados. A empresa também está equipada com equipamentos de teste avançados e uma equipe de testes profissional para realizar testes abrangentes de vários indicadores de desempenho do produto para garantir que cada conjunto de rolamentos rígidos de esferas possa atender ou até mesmo exceder os padrões da indústria. É essa busca persistente pela qualidade que conquistou aos rolamentos rígidos de esferas da Ningbo Wanshun uma boa reputação e amplo reconhecimento no mercado.
Olhando para o futuro, a Ningbo Wanshun Bearing Co., Ltd. continuará a defender a filosofia empresarial de "fazer amigos antes de fazer negócios, benefício mútuo e desenvolvimento comum" e realizar uma cooperação ampla e profunda com amigos de todas as esferas da vida. vida no país e no estrangeiro com uma mente mais aberta e ações mais pragmáticas. A empresa acredita firmemente que através de esforços e inovações contínuas, contribuirá para o desenvolvimento da produção industrial no meu país e até no mundo. Ao mesmo tempo, a empresa também espera trabalhar de mãos dadas com mais parceiros com ideias semelhantes para criarmos juntos um futuro melhor.
